Product Description

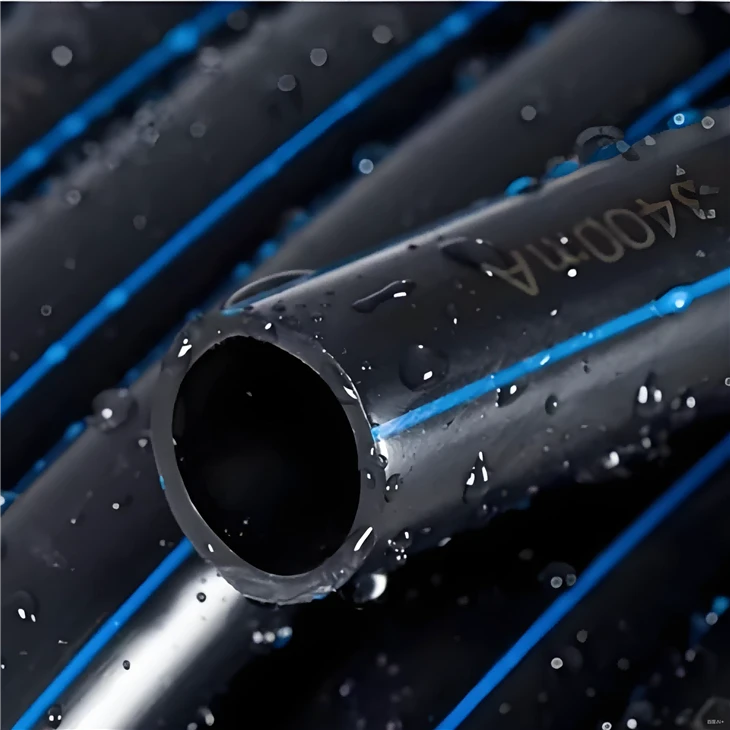

DN50 SDR17 HDPE Irrigation Pipe is a plastic pipeline made from high-molecular polyethylene through an extrusion process. This pipe features high wear resistance, excellent flexibility, corrosion resistance, impact resistance, and easy installation. As a result, it is widely used in medium-to-low-pressure irrigation systems, such as agricultural irrigation, orchard irrigation, and garden irrigation, playing an irreplaceable role in irrigation systems.
Technical Specifications
| Nominal Diameter (DN) | 50 mm |
| Outside Diameter (OD) | 63 mm |
| Standard Dimension Ratio (SDR) | 17 |
| Wall Thickness | 3.7 mm |
| Pressure Rating (PN) | PN6 (6 bar/0.6 MPa) |
| Material | High - Density Polyethylene (HDPE 100) |
| Color | Black |
| UV Resistance | Contains carbon black for UV resistance |
Application scenarios
Choose the plan that suits you best.
Agricultural irrigation
DN50 SDR17 HDPE pipes are used in irrigation systems.
Agricultural irrigation
DN50 SDR17 HDPE pipes are used in irrigation systems.
Agricultural irrigation
DN50 SDR17 HDPE pipes are used in irrigation systems.
Agricultural irrigation
DN50 SDR17 HDPE pipes are used in irrigation systems.
FAQ
Q:1.Will the DN50 HDPE irrigation pipes become brittle and crack in low - temperature environments?
A:DN50 HDPE irrigation pipes may become brittle and crack in low - temperature environments as HDPE's performance can be affected by cold, reducing its flexibility and impact resistance.
Q:2.Will scale form and algae grow on the inner walls of DN50 HDPE irrigation pipes?
A:Scale may form and algae may grow on the inner walls of DN50 HDPE irrigation pipes, especially when the water contains high levels of minerals and nutrients and there is sufficient sunlight and suitable temperature conditions.
Q:3.Will the joints of DN50 HDPE irrigation pipes leak?
A:The joints of DN50 HDPE irrigation pipes may leak if they are not properly installed, the sealing materials are of poor quality, or they are damaged during use.
Q:4.What is the minimum bending radius of DN50 HDPE irrigation pipes?
A:The minimum bending radius of DN50 HDPE irrigation pipes usually depends on factors such as the pipe's material grade and wall thickness, but generally, it is around 7 - 10 times the pipe diameter, so for a DN50 pipe, it is approximately 350 - 500 mm.
Q:5.Will the DN50 HDPE irrigation pipes deform after long - term exposure to sunlight?
A:DN50 HDPE irrigation pipes may deform after long - term exposure to sunlight because ultraviolet rays in sunlight can cause the polymer chains in HDPE to break down, weakening the pipe structure.
Q:6.Will the DN50 HDPE irrigation pipes burst under high pressure?
A:DN50 HDPE irrigation pipes may burst under high pressure if the pressure exceeds the pipe's rated pressure capacity, which is determined by its material properties and manufacturing standards.
Ordering Notes
| Minimum order quantity(MOQ) | Coiled pipe: 1 coil. Straight pipe: 100 meters. |
| Lead time | 7 days |
| Payment ratio | Pay a 50% deposit in advance and settle the remaining balance before shipment. |
| Customization is supported | Length, color, wall thickness |
| Technical support | Installation instructions and maintenance instructions |
