As a supplier of Pe Pipe Elbows, I am often asked whether these fittings are available in different shapes. The answer is a resounding yes! In the world of piping systems, the variety of shapes for PE pipe elbows is extensive, catering to a wide range of applications and installation requirements.
Common Shapes of PE Pipe Elbows

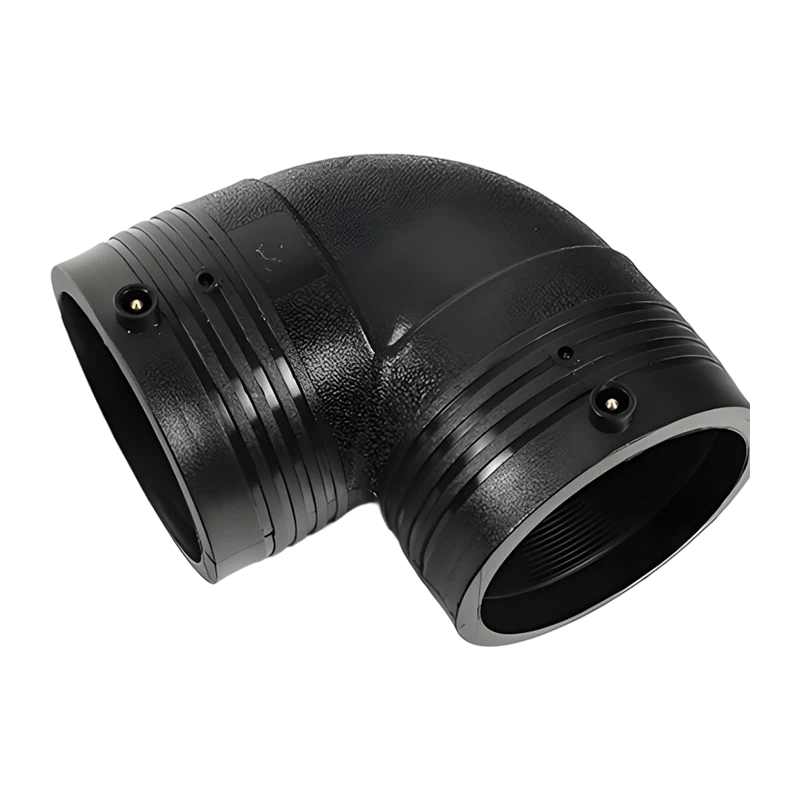

90 - Degree Elbows
The 90 - degree elbow is perhaps the most well - known and commonly used shape. It is designed to change the direction of the pipeline by a right angle. This shape is ideal for creating corners in plumbing systems, industrial piping, and irrigation networks. For instance, in a building's plumbing system, 90 - degree elbows are used to direct water pipes around structural obstacles or to connect pipes at perpendicular junctions. Our Pe Pipe Elbow products in this shape are made from high - quality polyethylene, which offers excellent resistance to corrosion, abrasion, and chemicals. This ensures a long - lasting and reliable connection in various environments.
45 - Degree Elbows
45 - degree elbows provide a more gradual change in direction compared to 90 - degree elbows. They are useful when a less sharp turn is required, such as in situations where space is limited or when a more fluid flow path is desired. In irrigation systems, 45 - degree elbows can be used to direct water pipes around curves in the landscape, minimizing pressure loss and ensuring efficient water distribution. Our 45 - degree PE pipe elbows are manufactured with precision to ensure a perfect fit and seamless flow of the fluid within the pipeline.
Reducing Elbows
Reducing elbows are a special type of elbow that not only changes the direction of the pipeline but also reduces the pipe diameter. This is particularly useful when connecting pipes of different sizes. For example, in a water supply system, a reducing elbow can be used to connect a larger main pipe to a smaller branch pipe. Our reducing elbows are engineered to maintain the integrity of the pipeline and prevent any significant pressure drops. They are available in various size combinations to meet the specific needs of different projects.
Special Shaped PE Pipe Elbows
Custom - Angled Elbows
In addition to the standard 90 - degree and 45 - degree elbows, we also offer custom - angled elbows. These are designed to meet the unique requirements of specific projects. For example, in some industrial applications, a pipeline may need to make a turn at an angle other than the standard ones. Our team of engineers can work closely with customers to design and manufacture custom - angled elbows that precisely match their specifications. This flexibility allows us to provide solutions for even the most complex piping systems.
Long - Radius Elbows
Long - radius elbows have a larger radius of curvature compared to standard elbows. This results in a smoother flow path for the fluid within the pipeline, reducing turbulence and pressure loss. They are commonly used in high - flow applications, such as in oil and gas pipelines or large - scale water treatment plants. Our long - radius PE pipe elbows are made from high - density polyethylene (HDPE), which has excellent mechanical properties and can withstand high pressures and harsh environmental conditions.
Advantages of Different Shaped PE Pipe Elbows
Versatility
The availability of different shapes of PE pipe elbows allows for greater versatility in pipeline design. Engineers and installers can choose the appropriate elbow shape based on the specific requirements of the project, such as the layout of the building, the type of fluid being transported, and the available space. This versatility ensures that the piping system can be optimized for maximum efficiency and performance.
Compatibility
PE pipe elbows are compatible with a wide range of PE pipes and other fittings. Whether you are using HDPE Fusion Fittings or Hdpe Tee Pipe Fitting, our elbows can be easily integrated into the system. This compatibility simplifies the installation process and reduces the risk of leaks or other issues.
Durability
Polyethylene is a highly durable material that offers excellent resistance to corrosion, abrasion, and chemicals. This means that our PE pipe elbows can withstand the test of time, even in harsh environments. They are also resistant to UV radiation, making them suitable for outdoor applications. The durability of our elbows ensures a long service life for the piping system, reducing the need for frequent replacements and maintenance.
Applications of Different Shaped PE Pipe Elbows
Plumbing Systems
In residential and commercial plumbing systems, different shaped PE pipe elbows are used to connect water pipes, drainage pipes, and ventilation pipes. The 90 - degree and 45 - degree elbows are commonly used to create corners and turns in the pipes, while reducing elbows can be used to connect pipes of different sizes. The durability and corrosion resistance of PE pipe elbows make them an ideal choice for plumbing applications.
Irrigation Systems
Irrigation systems require a reliable and efficient piping network to distribute water evenly. Different shaped PE pipe elbows are used to direct the water pipes around the landscape, ensuring that water reaches all areas of the field or garden. The smooth flow path provided by long - radius elbows and the flexibility of custom - angled elbows make them well - suited for irrigation applications.
Industrial Applications
In industrial settings, such as chemical plants, oil refineries, and power generation facilities, PE pipe elbows are used in a variety of piping systems. They are used to transport various fluids, including chemicals, oil, and water. The ability to choose from different shapes and sizes of elbows allows for the design of complex piping systems that can meet the specific requirements of the industry.
Quality Assurance
As a supplier of Pe Pipe Elbows, we are committed to providing high - quality products. Our manufacturing process adheres to strict quality control standards to ensure that each elbow meets or exceeds industry specifications. We use advanced testing equipment to test the mechanical properties, pressure resistance, and chemical resistance of our products. This ensures that our customers receive only the best - quality PE pipe elbows that are reliable and long - lasting.
Contact Us for Your PE Pipe Elbow Needs
If you are looking for high - quality PE pipe elbows in different shapes, look no further. Our extensive range of products, combined with our expertise in pipeline solutions, makes us the ideal partner for your piping projects. Whether you need standard elbows or custom - designed ones, we can provide you with the right solution. Contact us today to discuss your requirements and start the procurement process. We are ready to work with you to ensure the success of your project.
References
- ASTM D3350: Standard Specification for Polyethylene Plastics Pipe and Fittings Materials
- ISO 4427: Plastics piping systems - Polyethylene (PE) pipes and fittings for water supply
- AWWA C901: Polyethylene (PE) Pressure Pipe and Fittings, ¾ in. Through 6 in. (20 mm Through 150 mm), for Water Service
