Introduction

A buried HDPE mining pipe may pass its initial inspection and show no leakage after installation. Months later, however, its cross-section may become slightly oval rather than remaining perfectly circular.

This change is known as ovalization. It is especially relevant to mine drainage systems installed beneath haul roads, in backfilled trenches, around mine facilities or in areas affected by ground movement.

For project engineers, the concern is not simply whether the pipe has changed shape. The more important questions are how much deformation has occurred, whether it remains stable, and whether the pipe can continue carrying the required flow without compromising structural performance.

Understanding ovalization requires looking at the interaction between the pipe wall and the surrounding soil.

1. What Is Ovalization?

A circular pipe has approximately the same diameter in every direction across its cross-section. When external loads cause the pipe to flatten in one direction, its vertical and horizontal diameters become different.

For example, vertical loading from soil may compress the pipe vertically while causing it to expand horizontally. The resulting cross-section becomes oval.

The degree of deformation can be expressed as a percentage:

Ovalization = (Dmax − Dmin) / Dref × 100%

Here, Dmax and Dmin are the measured maximum and minimum diameters. Dref is the reference diameter defined by the applicable assessment method.

The reference diameter and measurement procedure should be specified consistently. Different assessment standards may define their measurement methods differently.

Ovalization does not necessarily mean that a pipe has failed. Flexible thermoplastic pipes are designed to interact with the surrounding soil, and some deformation is expected under load.

The engineering question is whether the deformation stays within the permitted limit for the specific pipe, installation and service conditions.

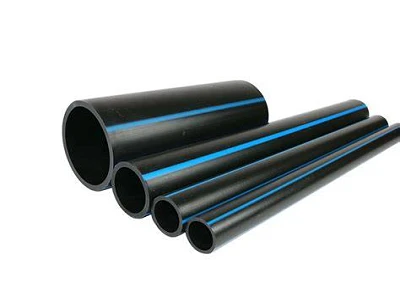

info-400-300

2. Why Does Soil Loading Change the Pipe's Shape?

A buried pipe does not carry external loads in isolation. Its structural behavior depends on both the pipe wall and the soil around it.

After installation, the pipe may experience several sources of loading.

Source of loading	Potential effect
Soil cover	Produces sustained external loading
Heavy vehicles	Introduce additional loads, especially where cover is limited
Backfill compaction	Can create temporary or uneven construction loads
Poorly compacted bedding	May leave unsupported sections beneath the pipe
Uneven side support	Can increase localized deformation
Ground settlement	May change the support conditions along the pipeline
Groundwater changes	Can alter soil conditions and effective loading
Excavation near the pipeline	May disturb the surrounding soil structure

The same pipe installed in two different trenches may therefore behave differently.

Consider two mine drainage lines with identical nominal diameter and wall thickness. One is installed on properly prepared bedding, with suitable backfill and controlled compaction. The other rests on an uneven trench bottom, with coarse material pressing against parts of the wall and inconsistent side support.

Even if both pipes are exposed to similar soil cover, the second installation may produce less favorable deformation patterns.

This is why increasing wall thickness alone does not correct every buried-pipe problem. Installation quality and soil support must be considered together with the pipe specification.

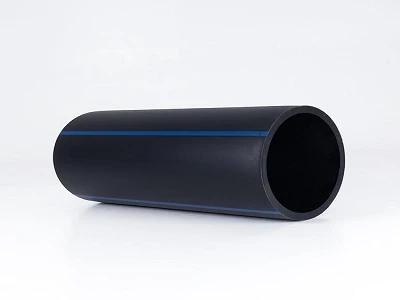

info-400-300

3. What Is the Relationship Between Ovalization and Ring Stiffness?

Ring stiffness describes a pipe's resistance to deformation under external loading.

It is particularly relevant when evaluating flexible pipes in buried installations. Unlike a rigid pipe that is expected to retain its shape largely through its own structural rigidity, a flexible pipe relies on interaction with the surrounding soil.

For a homogeneous thermoplastic pipe, ring stiffness is strongly influenced by the material's short-term modulus and the pipe wall geometry. In simplified form, its geometric dependence can be represented as:

S ∝ EI / Dm³

where E represents the relevant material modulus, I is the second moment of area of the pipe wall per unit axial length, and Dm is the mean diameter used in the calculation.

For a thin, uniform wall, the geometric term I increases approximately with the cube of wall thickness. This explains why wall geometry can have a substantial effect on ring stiffness.

However, this relationship is a simplified mechanical explanation, not a substitute for the applicable ring-stiffness test or buried-pipe design method. Actual material behavior, wall structure, dimensions and test procedures must be considered.

Ring stiffness also should not be confused with internal pressure rating.

Parameter	What it evaluates
PN or pressure rating	Permitted internal-pressure service under the applicable design conditions
Wall thickness	Affects pressure capacity and structural response
SDR	Relates nominal outside diameter to nominal wall thickness
Ring stiffness	Resistance to ring deformation under external loading
Allowable ovalization	The permitted deformation under the governing design or product criteria

A pipe with a suitable internal-pressure rating is not automatically suitable for every buried installation. The external-load assessment must be performed separately.

4. Why Can Ground Settlement Be More Difficult Than Uniform Soil Pressure?

Uniform loading is only one possible underground condition.

Mining sites can experience differential settlement, changes in ground support, excavation-related movement and local soil displacement. When one section of a pipeline settles more than an adjacent section, the pipe may experience bending and axial strain in addition to cross-sectional deformation.

For example, a drainage pipe crossing a transition between compacted fill and relatively undisturbed ground may encounter different support conditions along its length.

If one section moves downward while the next remains relatively stable, the pipe must accommodate the resulting change in alignment. Depending on the magnitude of movement and the installation design, this can create additional stresses around joints, fittings and locally constrained sections.

A pipe's flexibility can help it accommodate certain ground movements, but flexibility should not be mistaken for unlimited movement capacity.

The allowable response depends on the pipe dimensions, material behavior, joint design, support conditions and magnitude of ground displacement.

For mines located in areas with settlement or ground movement concerns, these conditions should be considered during route planning and buried-pipe design rather than addressed only after deformation becomes visible.

5. How Does Ovalization Affect Drainage Performance?

The structural and hydraulic consequences of ovalization are related, but they are not identical.

A modest change in cross-sectional shape does not necessarily cause an immediate loss of service. The hydraulic effect depends on the amount and direction of deformation, the resulting flow area, the operating flow rate and the overall pipeline geometry.

Greater deformation can change the effective flow area and hydraulic characteristics. If the pipe also develops a local low point, sediment accumulation or a restriction, the effect on drainage performance may become more significant.

For a mine drainage line, this matters because reduced drainage capacity can affect water removal during normal operations and during periods of increased inflow.

Engineers should therefore evaluate two questions separately: whether the pipe remains structurally acceptable and whether the deformed pipeline can still deliver the required hydraulic performance.

A structural inspection alone does not establish the available flow capacity, and a flow test alone does not prove that the pipe wall remains structurally sound.

6. How Should Buyers Specify HDPE Pipes for Buried Mining Applications?

A useful specification should include more than nominal diameter and pressure class.

Specification item	Why it matters
Outside diameter and wall thickness	Establish the basic pipe geometry
Material grade	Determines relevant mechanical and long-term material properties
SDR and pressure rating	Define important aspects of the pressure-pipe specification
Ring-stiffness requirement, where applicable	Addresses resistance to external ring deformation
Burial depth	Helps establish the external loading condition
Vehicle loading	Identifies additional loads from haul roads or site traffic
Bedding and backfill requirements	Defines the support conditions around the pipe
Groundwater and soil conditions	Helps assess changes in the surrounding environment
Settlement or ground-movement requirements	Identifies potential differential movement
Joint and fitting details	Addresses continuity and localized loading at connections

Ring stiffness should be specified and evaluated using the applicable standard for the actual pipe construction. It should not be assigned an arbitrary value simply because the pipeline is buried.

Similarly, the allowable deformation criterion should come from the relevant design standard, project specification or engineering assessment. There is no single ovalization limit that can be applied indiscriminately to every HDPE mining pipe.

7. When Should HDPE and SRTP Be Compared?

For buried mine drainage and water supply, HDPE may be appropriate where pressure demands, external loads and installation conditions fall within its design capabilities.

SRTP may be worth evaluating when the project requires a reinforced structure for higher-pressure service. However, steel-wire reinforcement should not be treated as an automatic solution to poor bedding, inadequate backfill or differential settlement.

Both products need a suitable installation design. Their external-load performance must be assessed using the relevant product characteristics and design methods.

The correct choice depends on the combination of internal pressure, external loading, ground conditions, installation method and required service life.

Conclusion

Ovalization is not simply a sign that an HDPE pipe is too thin. It can reflect the combined influence of wall stiffness, soil support, construction quality and ground movement.

For mining buyers, the practical lesson is to specify the pipe and its buried installation as one system. Wall thickness and pressure rating remain important, but they cannot replace an assessment of external loads and soil conditions.

A well-selected pipe installed in poorly prepared ground can still encounter avoidable problems. Good pipe selection and good installation design must work together.
