Introduction

Acid Mine Drainage (AMD) is not an easy medium to handle in a mining pipeline. It usually has a low pH and may contain sulfates, dissolved metals such as iron, aluminum and manganese, together with suspended mineral particles.

For a pipeline running continuously under these conditions, corrosion is only part of the problem. Acidic chemicals attack metal surfaces, while mineral particles cause ongoing abrasion. In long-distance pipelines, high flow velocity, deposits and bends can make wear more severe.

Carbon steel is still widely used in mining because of its mechanical strength. The problem is that acidic media can cause internal corrosion. Once the steel wall starts losing thickness, abrasive solids can accelerate the damage.

UHMWPE (Ultra-High Molecular Weight Polyethylene) works differently. It is non-metallic and has high chemical resistance, high wear resistance, low friction and good impact resistance. These properties make it a practical material to evaluate for AMD, acidic slurry and other abrasive mining services.

1. Why Can Acid Mine Drainage Damage Mining Pipelines?

Low pH

Low-pH mine drainage can be aggressive toward carbon steel. Without suitable corrosion protection, long-term exposure may cause internal corrosion and gradual wall-thickness loss.

Dissolved Chemicals

AMD may contain sulfates and dissolved Fe, Al and Mn. The chemical composition is different from one mine to another, so pH alone does not tell the whole story when selecting a pipe material.

Suspended Mineral Particles

AMD is not always free of solids. Sand, mineral fines, rock fragments and other particles may remain in the flow. At sufficient velocity, these particles repeatedly hit and slide along the pipe wall, producing abrasive wear.

So the pipe may be dealing with two problems at the same time:

Chemical Exposure + Abrasion

That is an important point when selecting a material for AMD service.

2. Why Is UHMWPE Suitable for Acidic Mine Media?

UHMWPE has high chemical resistance to many aqueous solutions, non-oxidizing acids and alkalis. This property is useful when the pipeline carries acidic mine drainage or slurry containing chemically aggressive substances.

Celanese's published GUR® UHMW-PE chemical-resistance data are based on 30-day tests using dumbbell-type specimens. The ratings are:

+ Resistant: Mechanical properties are not appreciably affected.

X Limited: Yield stress and ultimate tensile strength decrease by less than 20%.

− Not Resistant: The decrease exceeds 20%.

The table also shows why chemical compatibility needs to be checked carefully. The resistance of UHMWPE changes with the chemical type, concentration and temperature. For example, a material may show resistance to a certain acid at one concentration but a different rating at a higher concentration or temperature.

These figures are published material test results. They should not be treated as the design limits of every UHMWPE mining pipe. The actual medium and operating temperature should be checked before final material selection.

3. UHMWPE Also Handles Abrasive Mining Media

Chemical resistance is only one part of the AMD application.

When mineral particles are present, the pipe wall is exposed to continuous friction and particle impact. UHMWPE's high molecular weight and wear-resistant structure give it good resistance to abrasive service.

The internal surface is also smooth and has a low coefficient of friction. This helps reduce friction between the slurry and the pipe wall during transportation.

For acidic mining slurry containing solids, the useful combination is:

Chemical Resistance + Abrasion Resistance + Low Friction

This is one reason UHMWPE is used in demanding mining slurry applications rather than treating chemical resistance as the only requirement.

4. Why Does UHMWPE Not Corrode Like Carbon Steel?

Carbon steel can undergo electrochemical corrosion in aqueous environments, particularly when acidic conditions are present.

UHMWPE is non-metallic, so it does not experience conventional steel-type electrochemical corrosion. Its resistance comes from the polymer itself rather than from a corrosion coating applied to a steel surface.

This is particularly relevant when internal corrosion is one of the main concerns in an AMD pipeline.

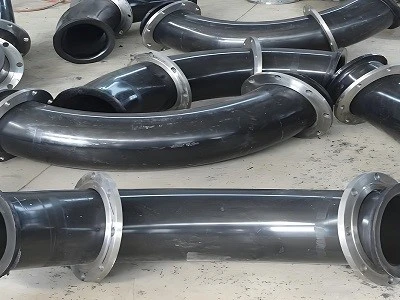

For applications where the pipe also needs a steel structural layer, UHMWPE-lined steel pipe is another option. The steel provides mechanical support, while the UHMWPE lining forms the internal surface exposed to the acidic and abrasive medium.

The choice between a UHMWPE pipe and a UHMWPE-lined steel structure depends on pressure, diameter, installation conditions and mechanical requirements.

5. Can the Smooth UHMWPE Surface Reduce Deposition?

Particle deposition is another issue in mining drainage systems.

UHMWPE has a smooth, low-friction and non-stick internal surface. With suitable flow conditions, this can help reduce particle adhesion and material buildup on the pipe wall.

It does not mean that deposits will never occur. Flow velocity, pipe diameter, solids concentration, particle size and slurry characteristics all affect particle settlement.

For this reason, pipe material and hydraulic conditions should be looked at together when designing an AMD pipeline.

6. Typical Applications in AMD Systems

UHMWPE pipes can be used or evaluated for a range of mining services involving acidic or abrasive media, including:

Acid Mine Drainage

Mine drainage systems

Acidic slurry transportation

Acidic tailings transportation

Long-distance mine drainage

Abrasive mineral slurry

Concentrate transportation

The required pipe structure and pressure rating depend on the medium, pressure and installation conditions.

7. UHMWPE vs Carbon Steel

The point is not that UHMWPE replaces carbon steel in every mining pipeline. Steel may still be the appropriate structural material for certain pressure or mechanical requirements.

The better question is whether the selected pipe structure can handle the actual pressure, chemical exposure, abrasive solids and installation conditions.

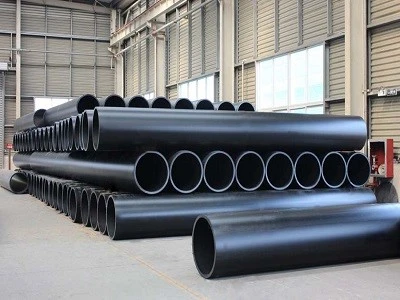

8. Typical UHMWPE Mining Pipe Parameters

Celanese lists GUR® UHMW-PE with high chemical resistance, excellent wear resistance, low coefficient of friction and a service temperature range of approximately -270°C to 80°C. Mining and mineral processing are also listed among its application areas.

For a specific mining project, wall thickness, pressure rating, pipe structure and connection method need to match the operating conditions.

9. What Information Is Needed for AMD Pipe Selection?

pH is useful, but it is not enough by itself. Before selecting the pipe, it is better to have the following information:

Chemical composition and concentration - What acids, salts and other chemicals are present, and at what concentration?

Temperature - What is the normal and maximum operating temperature?

Solids concentration - How much solid material is carried by the drainage or slurry?

Particle size and hardness - These have a direct effect on abrasive wear.

Operating pressure - Determines the required pressure rating and pipe structure.

Flow rate and velocity - Important for wear, particle suspension and deposition.

Pipe diameter and pipeline length - Required for pipe selection and system design.

Installation environment - Underground, above-ground and buried installations may require different pipe structures and connection methods.

The more complete the operating information, the more accurately the UHMWPE pipe specification can be selected.

10. Conclusion

Acid Mine Drainage puts several demands on a mining pipeline at once. Low pH and aggressive chemicals create corrosion concerns for metal pipes, while suspended mineral particles continue to wear the internal surface.

UHMWPE brings several useful properties to this type of service: chemical resistance, abrasion resistance, low friction and impact resistance. Because it is non-metallic, it also does not suffer from conventional steel-type electrochemical corrosion.

But UHMWPE should not be selected simply because the medium has a low pH. Acid type, concentration, temperature, solids concentration, particle characteristics, pressure, flow conditions and installation environment all matter.

For AMD pipeline selection, the main factors are:

Low pH + Chemical Exposure + Abrasive Particles + Pressure + Temperature

With these operating details, the appropriate UHMWPE pipe specification, pressure rating, structure and connection method can be evaluated.

FAQ

Q1. Can UHMWPE pipe be used for Acid Mine Drainage?
Yes. It can be suitable when the chemical and mechanical operating conditions fall within the verified compatibility range.

Q2. Is UHMWPE resistant to sulfuric acid?
It can show good resistance under specific conditions. The concentration and operating temperature must be checked together.

Q3. Can UHMWPE replace carbon steel in AMD systems?
It can be an option where internal corrosion and abrasive wear are major concerns. Pressure, pipe structure, connections and installation conditions must also be checked.

Q4. Does UHMWPE completely eliminate pipeline wear?
No. Wear still depends on particle hardness, solids concentration, flow velocity, particle size and pipeline geometry.

Q5. What information is needed for pipe selection?
Provide the medium, pH, chemical composition, concentration, temperature, solids concentration, particle size, pressure, flow rate, pipe diameter and pipeline length.
