Introduction

A mine drainage pipeline may remain undisturbed for years in one section and face repeated heavy vehicle loading in another. If the route passes beneath a haul road, the question is not simply how deep the pipe should be buried. The design must establish how the soil, road structure and pipe share the loads imposed above the line.

Choosing greater burial depth without checking the complete loading condition can be misleading. More soil cover increases the weight of the soil above the pipe, while also changing how surface loads reach pipe level. Whether a deeper installation improves the overall design depends on the conditions and calculation method.

For HDPE pipes, this assessment is particularly important because the pipe is flexible and relies partly on the surrounding soil to resist external loads.

1. Cover Depth and Total Burial Depth Are Not the Same Design Question

Cover depth usually refers to the vertical distance from the top of the pipe to the finished ground surface. Total burial depth may be measured using a different reference point, so drawings should define the measurement clearly.

Cover is important because it influences the way traffic loads are transmitted through the ground. A shallow pipe may experience a greater influence from a nearby wheel load than a deeper pipe under otherwise comparable conditions.

However, deeper burial also means more soil above the pipe. The resulting soil load depends on soil unit weight, trench geometry, groundwater and the interaction between the backfill and surrounding ground.

The relationship can be understood using a simplified overburden expression:

σv≈γH\sigma_v \approx \gamma H

Here, σv\sigma_v is the estimated vertical stress from the soil above the point being considered, γ\gamma is the soil unit weight, and HH is the height of the soil column.

This is only a simplified illustration of soil weight. It does not calculate the complete loading on a buried pipe, because actual load transfer also depends on trench conditions, soil movement and surface loading.

The design should therefore determine the required cover from the complete set of conditions, rather than using a single depth rule for every part of the route.

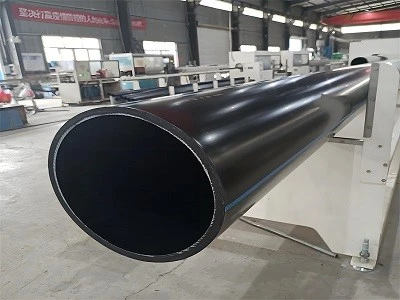

HDPE Pipe

2. Why Wheel Loads Need to Be Evaluated at Pipe Level

A heavy vehicle does not apply its entire wheel load directly to the pipe crown. The load is distributed through the ground, and its effect at pipe level depends on the geometry and properties of the soil and road structure.

The relevant factors include vehicle loading, wheel spacing, cover depth, soil characteristics and the construction of the surface above the pipeline.

A haul road with a designed pavement or structural layer may distribute traffic loads differently from an unpaved access track. The same vehicle can also create different conditions during construction, when the finished surface and full cover may not yet be present.

This distinction is important when planning the installation sequence. A pipe designed for the completed road should not automatically be treated as ready for unrestricted heavy traffic immediately after it is placed in the trench.

If construction vehicles need to cross the route before the required cover and road structure are in place, the responsible engineer should determine whether the proposed movement is acceptable or whether temporary restrictions or protective measures are needed.

3. Pipe Flexibility Is Part of the Structural Design

HDPE behaves differently from a rigid pipe. Under external loading, a flexible pipe may change its cross-sectional shape. The soil surrounding the pipe provides lateral resistance that helps limit this deformation.

The amount of deformation depends on more than the pipe wall. It is influenced by pipe stiffness, embedment material, the quality of installation, cover and external loads.

Consider two otherwise identical pipes installed under the same nominal cover. If one has suitable material compacted around its lower sides and the other has voids in those zones, their responses to external loading may differ.

The pipe with inadequate support cannot be assumed to perform as predicted by a calculation based on suitable embedment conditions.

This is why external-load design and construction quality must be considered together. Selecting a pipe with suitable structural properties is necessary, but the installed trench must provide the support assumed by the design.

4. SDR Does Not Directly Tell You Whether a Pipe Can Carry Traffic Loads

SDR is the ratio of a pipe's nominal outside diameter to its nominal wall thickness:

SDR=DeSDR = \frac{D}{e}

Here, DD is the nominal outside diameter and ee is the nominal wall thickness. For a given outside diameter, a lower SDR corresponds to a thicker wall relative to the pipe diameter.

This dimensional relationship is useful when specifying HDPE pipe, particularly for pressure-related product selection. However, SDR alone does not establish the complete resistance of a buried pipe to traffic and soil loading.

Ring stiffness is a separate property used to characterize resistance to ring deformation under a specified test method. The required structural assessment for a buried pipeline must use the applicable pipe properties, design method and installation assumptions.

For a pressurized mine drainage line, the design must address both internal-pressure requirements and external-load conditions. A pressure rating should not be treated as proof that a pipe is suitable for every burial depth or traffic condition.

Similarly, a ring-stiffness value should not be interpreted as a substitute for pressure design where internal pressure is part of the service duty.

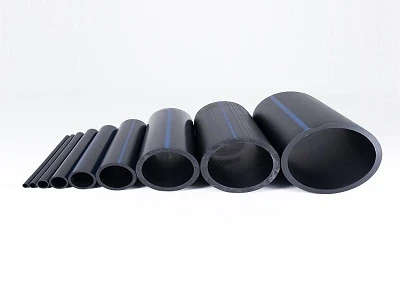

HDPE Pipe

5. Settlement Can Change the Loading Conditions After Installation

Mine sites may contain disturbed ground, backfilled excavations and areas affected by ongoing earthworks. These conditions can change after a pipeline is buried.

If the soil settles unevenly, the pipe may lose uniform support along its length. Adjacent sections may move by different amounts, causing local bending or changes in joint alignment.

A flexible pipe can accommodate some deformation, but that does not mean it can tolerate unlimited differential settlement. The allowable response depends on the pipe system, joint design, soil conditions and project requirements.

The route assessment should identify areas where settlement, erosion or ground movement is credible. These areas may require additional investigation or installation provisions rather than a simple increase in cover depth.

Backfill quality is also relevant. Poorly compacted material may compress over time, changing the support conditions that existed when the pipe was first installed.

6. How to Assess a Pipeline Beneath a Mine Road

The design process should begin with the actual site conditions, not a standard cover depth copied from another project.

The responsible engineer needs information about the pipe dimensions and structural properties, the intended operating duty, the soil profile, groundwater conditions, road construction and expected vehicle loading. Temporary construction traffic should be included where relevant.

The assessment should then determine the appropriate cover, embedment requirements and allowable deformation according to the applicable design standard. Sections beneath heavy traffic may need different provisions from sections in lightly loaded areas.

Where the route passes through soft or disturbed ground, the design should also consider settlement and the long-term condition of the surrounding soil.

If a proposed installation depth changes, the effect on both surface-load transmission and soil overburden must be evaluated. Increasing depth should be a calculated design decision, not a substitute for understanding the loading conditions.

Conclusion

The burial depth of an HDPE mine drainage pipe cannot be selected by considering cover alone. Soil weight, wheel loads, road structure, pipe stiffness and the quality of surrounding embedment all influence underground performance.

SDR describes the relationship between pipe diameter and wall thickness, while ring stiffness addresses resistance to ring deformation under a specified test method. Neither property independently proves that a buried pipe is suitable beneath a particular haul road.

A reliable design evaluates the pipe, the ground and the traffic conditions as one system, then ensures that the construction method delivers the support assumed by that design.
